The large array telescope new mexico is not just a collection of dishes — it is humanity’s most dramatic listening post, anchored in the high desert at 6,970 feet. Millions of people drive past on US-60 every year without grasping what those 27 white antennas are actually doing to our understanding of the cosmos.
I spent three days embedded with a graduate research team at the VLA site in Socorro County, watching operators reconfigure the array in real time while interferometric data streamed across screens faster than I could read the numbers. Standing between two 25-meter dishes during a D-configuration move — each antenna weighing 230 tons and gliding silently on rail tracks — changed something fundamental in how I think about scientific infrastructure.
Learn about the large array telescope new mexico and discover 7 amazing facts about its design, purpose, and how it helps astronomers study deep space.
1. What Exactly Is the Large Array Telescope New Mexico?

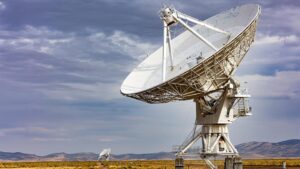

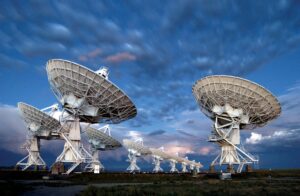

The large array telescope new mexico — formally named the Karl G. Jansky Very Large Array — sits on the Plains of San Agustin, about 50 miles west of Socorro. It is operated by the National Radio Astronomy Observatory (NRAO) under a cooperative agreement with the National Science Foundation. The facility has been operational since 1980, making it one of the longest-running major observatories in American history.
The array consists of 27 fully steerable parabolic antennas, each 25 meters (82 feet) in diameter, arranged in a Y-shaped configuration across three arms. A 28th antenna is kept as a spare. Each arm stretches across a purpose-built railway system that allows antenna positions to be changed over periods of weeks, giving astronomers four distinct array configurations — A, B, C, and D — that range from a maximum baseline of 36.4 kilometers down to just 1 kilometer. This reconfigurability is what distinguishes the large array telescope new mexico from virtually every other radio observatory on Earth.
The VLA operates across radio frequencies from 1 GHz to 50 GHz, covering wavelengths from roughly P-band through Q-band. In practical terms, that means the large array telescope new mexico can observe everything from diffuse hydrogen clouds spanning millions of light-years to compact jets shooting out of active galactic nuclei at near-light speeds. No single dish of equivalent sensitivity could replicate that range.
2. The Science That Made the VLA Famous:
When astronomers talk about the large array telescope new mexico, they usually land on a short list of breakthrough discoveries that redefined entire subfields. These are not incremental improvements. They are the kind of results that get cited in Nobel Prize lectures.
- Gravitational lensing confirmation: The VLA produced some of the first radio-wavelength images of gravitationally lensed quasars, directly testing predictions from general relativity at cosmological scales.
- Black hole jet imaging: Jets from supermassive black holes in galaxies like M87 were mapped in detail at the large array telescope in New Mexico long before the Event Horizon Telescope captured that iconic 2019 image.
- Supernova remnant mapping: Cassiopeia A and other remnants have been observed repeatedly across decades, giving researchers time-lapse data on how stellar explosions evolve.
- Pulsar timing: High-precision timing of millisecond pulsars at the large array telescope new mexico contributed foundational data to gravitational wave background research.
- Megamaser discovery: Water masers in ultraluminous infrared galaxies — among the brightest radio sources in the universe — were catalogued in systematic surveys run entirely from New Mexico.
Each of those discoveries came not from a single observation session but from years of campaign-style scheduling in which different research teams shared telescope time across multiple configurations and frequency bands.
3. How the Array large array telescope new mexico System Actually Works:
Understanding configurations is the key to understanding why scientists travel from around the world to work with the large array telescope new mexico. It is worth slowing down here because the mechanics are genuinely fascinating.
The physics of aperture synthesis — the technique that makes the VLA work — demands that the array simulate a single giant telescope dish. The way it does this is by recording not just signal strength but the precise phase relationship between signals arriving at pairs of antennas.
Each pair forms a “baseline,” and with 27 antennas, the VLA has up to 351 simultaneous baselines. Earth’s rotation continuously changes the orientation of those baselines relative to any given astronomical source, which means a single 8-hour observation session builds up a rich two-dimensional sample of the Fourier transform of the sky brightness distribution.
Computers then invert that transform to reconstruct an image.
1:A-Configuration: Maximum Resolution
The A-configuration spreads antennas to their maximum extent, with the longest baseline reaching 36.4 kilometers. This gives the large array telescope new mexico an angular resolution of about 0.04 arcseconds at 15 GHz — finer than the Hubble Space Telescope’s optical resolution. Observers needing to resolve compact structures like AGN cores or tight binary star systems request A-configuration time.
2: B-Configuration: The Workhorse Setting
B-configuration is where most of the VLA’s general-purpose high-resolution science happens. Baselines extend to about 11 kilometers, yielding resolutions in the range of 0.2 to 1 arcsecond depending on frequency. The large array telescope new mexico in B-configuration is well-matched to galaxy-scale structures, radio lobes of Seyfert galaxies, and star-forming regions in nearby galaxies.
3: C-Configuration: Extended Emission Mapping
Reduce the array to C-configuration — baselines up to 3.4 kilometers — and you start recovering extended emission that A and B configurations filter out. This is where observers studying diffuse structures like supernova remnants or the halo emission around galaxy clusters focus their proposals. The large array telescope new mexico in C-configuration complements space-based observations rather than competing with them.
4: D-Configuration: The Wide-Field View
D-configuration places antennas as close as 0.035 kilometers apart. This is the large array telescope new mexico at its most sensitive to diffuse, low-surface-brightness emission. HI 21-cm surveys of the Milky Way and nearby galaxy groups often request D-configuration time. The tradeoff is resolution: you lose the ability to distinguish compact features, but you gain sensitivity to emission spread across degrees of sky.
4. Visiting the VLA: What Most Travel Guides Get Wrong:
The large array telescope new mexico is one of the most accessible major observatories in the world, and most travel content drastically undersells what an in-person visit actually delivers:
- The self-guided tour is free and operates every day of the year, including federal holidays, from 8:30 AM to sunset. No reservation required for the walking tour.
- First Saturdays feature guided tours with staff scientists — these are dramatically more informative than the self-guided path, and they fill up fast in spring and fall.
- The gift shop and visitor center close at 4 PM on weekdays but extend hours on First Saturdays; plan accordingly if you want the full experience.
- Cell service is intentionally poor near the array. The site maintains a radio-quiet zone, and while modern smartphones aren’t technically prohibited, their transmissions are heavily attenuated by distance and terrain.
- The best photography light hits the large array telescope new mexico from about 6 to 8 AM and again in the 90 minutes before sunset. Midday is flat and harsh.
The drive from Albuquerque takes roughly 2 hours via I-25 South to US-60 West. Socorro itself has basic accommodation — the Holiday Inn Express is the best bet — but serious visitors heading to the large array telescope new mexico should plan a full day, not a half-day stop.
5. Radio Frequency Bands and What Each One Reveals:
The large array telescope new mexico doesn’t just detect radio waves — it decodes fundamentally different physical phenomena depending on which frequency band an observer chooses. Band selection is one of the most consequential decisions in radio astronomy proposal writing, and it’s poorly explained in most public-facing content.
The large array telescope new mexico currently supports ten receiver bands, each with distinct scientific applications, sensitivity profiles, and angular resolution characteristics.
1: L-Band (1–2 GHz): The Hydrogen Window
L-band is where the 21-centimeter hyperfine transition of neutral hydrogen falls, making it the workhorse band for studies of HI in galaxies, galaxy groups, and the circumgalactic medium. The large array telescope new mexico has produced definitive HI maps of dozens of nearby galaxies using L-band receivers. It is also the primary band for pulsar dispersion measurements and some types of magnetar monitoring.
2: S-Band (2–4 GHz): Thermal Continuum
S-band sits between the hydrogen line and the higher-frequency molecular transitions, making it ideal for thermal free-free emission from HII regions. Star formation rates in nearby galaxies are frequently estimated from S-band continuum flux at the large array telescope new mexico. Supernova remnant monitoring campaigns also use S-band to track spectral aging of relativistic electrons.
3: C-Band (4–8 GHz): The Clarity Band
C-band represents a sweet spot of angular resolution, sensitivity, and sky brightness temperature that makes it one of the most heavily subscribed bands at the large array telescope new mexico. Galaxy jets, radio lobes, and Galactic HII region complexes all look compelling at C-band. It is also less affected by the ionospheric phase errors that plague L and S-band observations.
4: X through Q Bands (8–50 GHz): Millimeter Territory
At X-band and above, the large array telescope new mexico begins competing with millimeter-wave arrays. Sunyaev-Zel’dovich effect measurements of galaxy clusters, maser emission from star-forming regions, and ammonia thermometry of cold molecular clouds all happen in these higher bands. The tradeoff is that atmospheric water vapor becomes a significant noise source above about 20 GHz, which is why the high, dry location of the large array telescope new mexico on the Plains of San Agustin was not chosen by accident.
6. The ngVLA: What Comes Next for New Mexico Radio Astronomy:
The large array telescope new mexico has a planned successor that will dwarf it in nearly every measurable way. The Next Generation Very Large Array — ngVLA — is currently in the design and development phase, with construction potentially beginning in the late 2020s if Congressional appropriations follow the Astro2020 decadal survey’s strong endorsement.
The ngVLA is not just a bigger version of the large array telescope new mexico. It is a fundamentally different instrument. The current VLA has 27 antennas with a maximum baseline of 36 kilometers. The ngVLA will eventually field 263 antennas spanning baselines up to 8,860 kilometers, incorporating sites from New Mexico to the Caribbean and Hawaii. Its frequency coverage will extend from 1.2 GHz to 116 GHz, with sensitivity improvements of roughly 10 times over the existing large array telescope new mexico at most frequencies.
The science case for the ngVLA reads like a greatest-hits list of astronomy’s hardest open problems: detecting Earth-mass planets via astrometric wobble, characterizing protoplanetary disk substructure at the scale of Earth’s orbit, measuring the Hubble constant independently via megamaser galaxies, and directly imaging magnetic field structure in the jets of nearby AGN.
| Specification | Current VLA (Karl G. Jansky) | ngVLA (Planned) |
| Number of antennas | 27 + 1 spare | 263 total |
| Antenna diameter | 25 m | 18 m (main array) |
| Maximum baseline | 36.4 km | 8,860 km |
| Frequency range | 1–50 GHz | 1.2–116 GHz |
| Angular resolution (10 GHz) | ~0.2 arcsec | ~0.003 arcsec |
| Sensitivity vs. current VLA | Baseline | ~10× improvement |
| Primary location | Plains of San Agustin, NM | Multi-site (NM, TX, IA, PR, HI) |
| Estimated construction start | N/A (operational since 1980) | Late 2020s (pending funding) |
| Primary funding agency | NSF / NRAO | NSF (Astro2020 endorsed) |
| Data rate | ~10 Gbps | ~4 Tbps |
7. How Observing Time Is Allocated at the VLA:
Getting telescope time at the large array telescope new mexico is a competitive, peer-reviewed process that works on a semester cycle. NRAO issues two calls for proposals per year — one in February covering the August–January semester, and one in August covering the February–July semester. The review process is blind, meaning reviewers don’t know who submitted a proposal, and proposals are graded on scientific merit, technical feasibility, and efficient use of the array’s capabilities.
- Proposal grades run from A to D, with A-rated proposals guaranteed scheduling and D-rated proposals rarely observed.
- Large and Key projects are multi-semester allocations that can lock up significant fractions of the total available time.
- Triggered programs exist for transient phenomena — gamma-ray bursts, gravitational wave counterparts, novae — and can be executed within hours of a notification alert.
- The NRAO archive holds decades of calibrated VLA data, freely accessible to any researcher in the world. Roughly 40% of publishable VLA science now comes from archival data rather than new observations.
- Director’s Discretionary Time provides a small reserve for exceptional time-sensitive targets.
8. Technical Challenges: Radio Frequency Interference:
One of the least discussed aspects of operating the large array telescope new Mexico is the ongoing battle against radio frequency interference, or RFI. The VLA sits in a relatively quiet part of New Mexico, but it is not isolated from the modern electromagnetic environment
- Satellite downlinks operating in L and S bands have grown dramatically since the original VLA design, forcing new RFI mitigation algorithms into the correlator software.
- Agricultural irrigation pumps within the radio-quiet zone have been a recurring source of interference requiring coordination with local landowners.
- Starlink and other low Earth orbit constellation signals represent an emerging challenge that the large array telescope new mexico operations team has been publicly vocal about.
- Military radar at nearby Holloman Air Force Base occasionally bleeds into X-band observations, requiring time-of-day scheduling coordination.
- In-band interference from the VLA’s own electronics — so-called self-generated RFI — is managed through careful shielding and careful correlator design.
The NRAO maintains a spectrum management team that works with the FCC and other federal agencies to protect frequency allocations that the large array telescope new mexico depends on. Losing even a narrow slice of L-band spectrum, for example, would compromise decades of HI galaxy survey science.
9. Education and Public Outreach at the Large Array Telescope New Mexico:
The VLA runs one of the more serious public education programs of any major US observatory, though it operates with a small dedicated staff relative to its global scientific reputation.The large array telescope new mexico has been a filming location for numerous science communication productions, which has raised its public profile well beyond what its press office alone could achieve.
1: The Visitor Center and Its Exhibits
The visitor center at the large array telescope new mexico is modest in size but dense in content. It houses decommissioned receiver equipment, scale models of the antenna array, and interactive displays explaining aperture synthesis at a level accessible to high school students. The exhibit on RFI is particularly well done — it uses audio demonstrations to give visitors a visceral sense of why radio quiet zones matter.
2: School and University Partnerships
NRAO runs a Research Experience for Undergraduates (REU) program at the large array telescope new mexico and its affiliated facilities in Charlottesville, Virginia, and Green Bank, West Virginia. Roughly 30 undergraduates per year spend 10 weeks working directly with staff scientists. Many of these students go on to radio astronomy careers. The acceptance rate is comparable to selective graduate programs.
3: The VLA in Popular Culture
Carl Sagan’s 1997 film Contact used the large array telescope new mexico as its primary filming location. The scene of Jodie Foster’s character walking among the antennas is perhaps the single most effective piece of science communication the site has ever generated. NRAO staff report a measurable spike in visitor numbers every time the film airs on cable television.
10. Wildlife and Ecology Around the Observatory:
This is genuinely the most overlooked dimension of any visit to the large array telescope new mexico. The Plains of San Agustin sit in a transition zone between the Chihuahuan Desert and the Colorado Plateau, and the relative absence of human development around the observatory has allowed a surprisingly intact grassland ecosystem to persist.
Pronghorn antelope — the fastest land mammal in the Western Hemisphere — graze regularly within sight of the antenna arms. Golden eagles hunt the grasslands surrounding the large array telescope new mexico throughout the year, and ferruginous hawks arrive in numbers during winter. Black-tailed prairie dog towns have established themselves along the eastern access road.
The observatory’s commitment to maintaining the radio-quiet zone has had an inadvertent conservation benefit: keeping heavy development at bay has also kept habitat fragmentation low. The large array telescope new mexico is, unintentionally, one of the better wildlife watching locations in central New Mexico.
11. How Weather Affects VLA Observations:
High desert weather in New Mexico can be extreme in ways that directly affect what the large array telescope new mexico can observe on any given day. This is not a minor operational footnote — weather is one of the primary reasons proposals specify flexible scheduling
Summer monsoon season, running roughly from early July through late September, brings afternoon convective storms that inject water vapor and turbulence into the atmosphere. This phase noise at higher frequencies — particularly above 20 GHz — can render Q-band and Ka-band observations unusable for hours at a time. Experienced observers scheduling the large array telescope new mexico in summer specifically request morning start times.
Winter brings a different problem: ice loading on the antenna surfaces and dishes. When ice accumulates on a 25-meter dish, it changes the surface accuracy and alters the beam pattern in ways that introduce calibration uncertainty. The VLA has protocols for stowing antennas during heavy ice events, which can cost days of observing time per year. The large array telescope new mexico operations team tracks these losses carefully in annual efficiency reports.
Wind is the third factor. Above roughly 45 mph sustained winds, antenna tracking accuracy degrades. At 56 mph, the VLA goes into wind stow, with all dishes pointed to zenith to reduce wind loading on the drive systems. Severe windstorms in the late winter and early spring are the most common cause of weather-related downtime at the large array telescope new mexico.
12. Why the Large Array Telescope New Mexico Remains Irreplaceable:
In an era of billion-dollar space telescopes and international mega-projects, it would be easy to assume the large array telescope new mexico is a legacy instrument counting down to retirement. That assumption is wrong by a wide margin.
The VLA underwent a $94 million electronics upgrade completed in 2012 that replaced essentially all of its signal processing infrastructure. New receivers, a new correlator built on commodity computing hardware, and upgraded fiber connections between antennas transformed the large array telescope new mexico from a 1970s-era instrument into a genuinely 21st-century observatory. The instantaneous bandwidth increased by a factor of 8. The sensitivity improved by a similar factor. The same 27 dishes that were first observed in 1980 now produce data at a rate that would have been unimaginable to their designers.
The large array telescope new mexico occupies a frequency-coverage niche that no other facility fills. ALMA operates at millimeter and submillimeter wavelengths. The Event Horizon Telescope is a VLBI network tuned for the highest frequencies. The MeerKAT array in South Africa is more sensitive at low frequencies but has a fixed configuration. The large array telescope new mexico’s combination of reconfigurability, frequency coverage, and angular resolution range makes it complementary to all of them rather than redundant with any.
When the next major transient event lights up the radio sky — a neutron star merger, a galactic supernova, a nearby gamma-ray burst — the large array telescope new mexico will be pointed at it within hours, filling in the centimeter-wavelength portion of the multi-messenger picture that no other facility can provide. That role alone justifies its continued operation regardless of what ngVLA planning documents say about the future.
FAQ’s:
Q1:What is the large array telescope new mexico officially called?
It is formally named the Karl G. Jansky Very Large Array, operated by NRAO under NSF funding.
Q2:Can anyone visit the large array telescope new mexico?
Yes — the self-guided walking tour is free, open daily from 8:30 AM to sunset, no reservation needed.
Q3:How far is the large array telescope new mexico from Albuquerque?
It is approximately 50 miles west of Socorro, making the total drive from Albuquerque about 2 hours.
Q4:Does the large array telescope new mexico detect alien signals?
No confirmed alien signals have ever been detected, though SETI searches have used VLA time.
Q5:What is the difference between the VLA and the ngVLA?
The ngVLA is a planned successor with 10 times the sensitivity and baselines extending across North America.
Conclusion:
The large array telescope new mexico is not a museum piece. It is an active, evolving, irreplaceable scientific instrument that continues producing landmark discoveries while training the next generation of radio astronomers. Visit it, advocate for its funding, and follow the ngVLA development — the science coming out of New Mexico’s high desert is only getting started.
